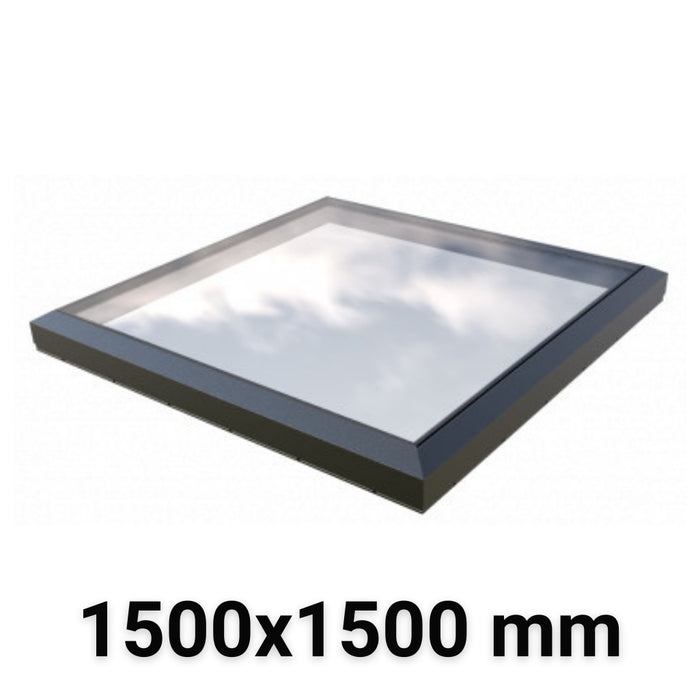

Fixed Single Module Glass Link Skylight

Transform your space with uninterrupted daylight using the Fixed Glass Link Single Module Skylight. Designed for contemporary homes and commercial buildings, this skylight delivers seamless integration, a flush aesthetic, and exceptional durability. Its innovative design ensures maximum light penetration while maintaining energy efficiency and safety.

Why Choose the Fixed Glass Link Skylight?

• Abundant Natural Light – The expansive glazing area with minimal framing allows for maximum daylight, creating bright and welcoming interiors.
• Versatile Installation – Suitable for roof pitches between 2° and 35°, making it adaptable to various architectural styles.
• Superior Insulation – A thermally broken aluminium frame and Low-E double glazing enhance energy efficiency, reducing heat loss and improving comfort.
• Enhanced Safety – Featuring laminated inner glass panes, this skylight meets CWCT TN-67 (Class 2) and ACR[M]001 Class B standards, ensuring protection for occupants both below and above.
• Modern & Durable Construction – Built with high-quality powder-coated aluminium in Anthracite Grey (RAL 7016) externally and White (RAL 9010) internally, ensuring long-lasting strength and contemporary appeal.
• Increased Security – Designed with robust materials and secure fixings, making it a safe and reliable choice for any property.

Technical Datasheet

Sleek & Energy-Efficient Design

• Flush, modern profile for a seamless, contemporary look.
• Dual-tone aluminium frame: Anthracite Grey (RAL 7016) exterior & White (RAL 9010) interior.
• Thermally broken frame enhances insulation and minimises heat loss.

Installation & Roof Compatibility

• Compatible with roof pitches from 2° to 35° for versatile application.
• Larger modules may need a minimum 5° pitch for optimal drainage.
• Longitudinal pitch adjusts between 0° to 15°, ensuring effective water runoff.

High-Performance Glazing

• 6mm toughened outer glass for enhanced durability.
• 16mm argon-filled spacer for superior thermal insulation.
• 9.5mm laminated inner pane with 1.5mm PVB interlayer (increased to 11.5mm for larger skylights).
• Low-E glass coating improves energy efficiency and temperature regulation.

Glazing Performance Ratings

• Light Transmission: 77% - 78%
• Solar Gain (G-Value): 0.56 - 0.57
• Reflectance: 12%
• Shading Coefficient: 0.64 - 0.65

Certified Performance & Security

• CWCT TN-67 (Class 2) certification ensures non-fragility for added safety.
• ACR[M]001 Class B rating for protection against impacts.
• Secured by Design accreditation for enhanced security.
• U-Value: 1.90 - 2.1 W/m²K for excellent thermal efficiency.
• Acoustic rating of 39dB (Rw) for noise reduction.
• Wind resistance up to 1200 N/m² and snow load resistance up to 600 N/m².

Warranty & Manufacturing Standards

• 10-year commercial warranty for durability and peace of mind.
• Produced under ISO 9001 & ISO 14001 standards, ensuring quality and environmental responsibility.

Sustainability & Eco-Friendly Materials

• Thermally broken aluminium frame for reduced energy loss.
• Constructed with recyclable materials, including aluminium, glass, ABS, and PVC.
• BRE Verified Environmental Product Declaration (EPD) supports sustainable building projects.

Product Care Datasheet

Installation Guide

Structural Guarantee

• Glass Link Rooflights are are guaranteed to remain fit for purpose under normal industrial conditions for 20 years with a 10-year warranty against becoming perforated, losing significant structural integrity, or distorting to the extent of losing weather-tightness.

Insulated Glass Protection

• The insulated glazing unit comes with a 5-year warranty, safeguarding against defects or premature failure.

If any glass damage is found upon delivery, please report it within 12 hours to qualify for a return or replacement. Prompt reporting helps us resolve issues quickly and efficiently.

Safety & Structural Integrity

• Non-Fragility Compliance: Glass Link modules conform to CWCT TN-67 for Class 2 non-fragile roofs and achieve ACR[M]001 Class B non-fragility when correctly installed as per Brett Martin Daylight Systems’ guidelines.
• Occupant Protection: The laminated inner glass pane enhances safety, preventing breakage risks and ensuring compliance with Rooflight Association (formerly NARM) NTD14 industry standards.
• Usage Precaution: These skylights are not designed for foot traffic, and any impact from falling objects or individuals may result in damage, requiring replacement if necessary.
• Industry Compliance: All glazing components conform to BS EN 12150, BS 14449, and BS 1279, meeting rigorous safety and performance standards.

Security & Installation

• Secure Fixings & Installation: Designed to be mounted on a structural, insulated builder’s upstand, each unit is securely affixed using self-drilling, anti-tamper security fixings to enhance protection against tampering or unauthorized removal.

Fire Resistance & Regulations

• Fire Safety Performance: The glass in these rooflights is rated Class A under EN 13501-1, classified as CWFT (Classified Without Further Testing) per European Commission Decision 96/603/EC, ensuring fire resistance without the need for additional testing.
• Building Regulations Compliance: Equipped with a 6mm toughened outer pane, the skylights meet the BROOF(t4) classification, confirming compliance with building regulations related to external flame spread and heat penetration.

Weather Resistance & Structural Durability

• Wind Load Endurance: Engineered to withstand wind pressures up to 1200 N/m², complying with BS EN 1991-1-4: 2005, which assesses structural stability against typical wind loads.
• Snow Load Performance: Designed to endure snow loads of up to 600 N/m², in accordance with BS EN 1873: 2005, ensuring resilience in extreme weather conditions.
