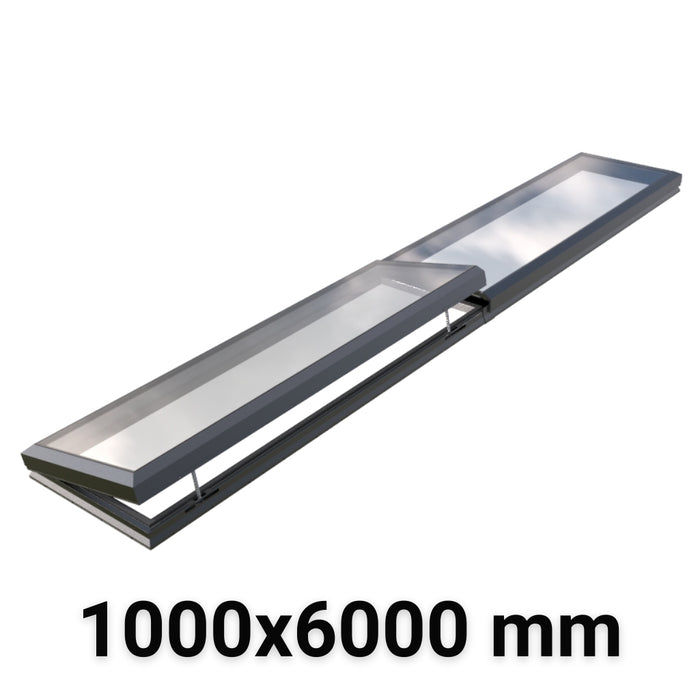

Electric Opening Modular Glass Link Skylight – Smart Ventilation & Natural Light

Transform your space with the Electric Opening Modular Skylight, designed to maximise natural light while offering automated ventilation for improved indoor air quality. Perfect for large, elongated areas, this system seamlessly integrates into modern architecture, ensuring a bright, well-ventilated environment with effortless operation.

Why Choose the Electric Opening Modular Skylight?

• Automated Ventilation – Effortlessly regulate airflow with electric opening modules, controllable via wall switch, remote control, or built-in rain sensors for added convenience.
• Sleek & Modern Aesthetic – A flush, low-profile design with concealed actuators ensures a clean, streamlined look, maintaining an unobstructed ceiling view.
• Smart Control Options – Optional control panels allow multiple skylights to operate in sync, with automatic closure during rain.
• Enhanced Natural Light & Airflow – Expansive glazed sections flood interiors with daylight while improving air circulation for a fresher environment.
• Effortless Installation – Pre-glazed modular units interconnect seamlessly, ensuring quick assembly without additional flashing or on-site sealing.
• Superior Thermal Performance – The thermally broken aluminium frame paired with Low-E double glazing enhances insulation, minimising heat loss and improving energy efficiency.
• Certified Safety & Security – Built with laminated inner glass panes, meeting CWCT TN-67 (Class 2) and ACR[M]001 Class B safety standards for impact protection.

Technical Datasheet

Design & Construction

• Pre-glazed modular units for quick and hassle-free installation.
• Expandable skylight system allows for extended configurations by linking multiple modules.
• Flush, contemporary design maintains a seamless look across all sections, including opening units.
• Discreet actuators and internal components ensure an uninterrupted view of natural light.
• Dual-tone aluminium frame, finished in Anthracite Grey (RAL 7016) externally and White (RAL 9010) internally.
• Thermally broken aluminium profile enhances insulation and energy efficiency.

Operation & Controls

• Electric opening system operated by a concealed chain actuator for smooth functionality.
• Standard wall switch control for simple operation.
• Optional remote control for added convenience.
• Rain sensor integration for automatic closing in wet weather conditions.
• Control panel options available for synchronised operation of multiple skylights.

Installation & Roof Compatibility

• Designed to fit roof pitches between 2° and 35° across the width and 15° along the length.
• Larger modules may need a minimum pitch of 5° to ensure proper drainage.
• Longitudinal pitch adjustable from 0° to 15°, facilitating efficient water runoff and preventing pooling.

Glazing Details

• 6mm toughened outer glass pane for superior strength and resilience.
• 16mm argon-filled spacer enhances insulation and energy savings.
• 9.5mm laminated inner pane with a 1.5mm PVB interlayer for increased security (thicker 11.5mm laminated panes used for larger units).
• Low-E glass coating improves thermal efficiency and solar control.

Glazing Performance

• Light Transmission: 77% - 78%
• G-Value (Solar Gain): 0.56 - 0.57
• Reflectance: 12%
• Shading Coefficient: 0.64 - 0.65

Performance & Compliance

• Certified non-fragile to CWCT TN-67 for Class 2 roofs.
• Class B non-fragile rating in compliance with ACR[M]001 safety standards.
• U-Value: Between 1.90 and 2.1 W/m²K for optimised energy efficiency.
• Acoustic Rating: 39dB (Rw) for effective noise reduction.
• Wind Load Resistance: Withstands up to 1200 N/m².
• Snow Load Resistance: Supports up to 600 N/m².

Warranty & Certifications

• 10-year commercial warranty ensuring long-term reliability.
• Manufactured in compliance with ISO 9001 (quality management) and ISO 14001 (environmental standards).

Sustainability & Materials

• Thermally broken aluminium frame for superior energy savings.
• Made from recyclable materials, including aluminium, glass, ABS, and PVC.
• BRE Verified Environmental Product Declaration (EPD) for eco-friendly design.

Product Care Datasheet

Installation Guide

Structural Guarantee

• Glass Link Rooflights are are guaranteed to remain fit for purpose under normal industrial conditions for 20 years with a 10-year warranty against becoming perforated, losing significant structural integrity, or distorting to the extent of losing weather-tightness.

Electrical Actuator Warranty

• The electric actuators are covered for 1 year, with a lifespan of at least 10,000 operation cycles, ensuring long-term reliability.

Insulated Glass Protection

• The insulated glazing unit comes with a 5-year warranty, safeguarding against defects or premature failure.

If any glass damage is found upon delivery, please report it within 12 hours to qualify for a return or replacement. Prompt reporting helps us resolve issues quickly and efficiently.

Safety & Structural Integrity

• Non-Fragility Compliance: Glass Link modules conform to CWCT TN-67 for Class 2 non-fragile roofs and achieve ACR[M]001 Class B non-fragility when correctly installed as per Brett Martin Daylight Systems’ guidelines.
• Occupant Protection: The laminated inner glass pane enhances safety, preventing breakage risks and ensuring compliance with Rooflight Association (formerly NARM) NTD14 industry standards.
• Usage Precaution: These skylights are not designed for foot traffic, and any impact from falling objects or individuals may result in damage, requiring replacement if necessary.
• Industry Compliance: All glazing components conform to BS EN 12150, BS 14449, and BS 1279, meeting rigorous safety and performance standards.

Security & Installation

• Secure Fixings & Installation: Designed to be mounted on a structural, insulated builder’s upstand, each unit is securely affixed using self-drilling, anti-tamper security fixings to enhance protection against tampering or unauthorized removal.

Fire Resistance & Regulations

• Fire Safety Performance: The glass in these rooflights is rated Class A under EN 13501-1, classified as CWFT (Classified Without Further Testing) per European Commission Decision 96/603/EC, ensuring fire resistance without the need for additional testing.
• Building Regulations Compliance: Equipped with a 6mm toughened outer pane, the skylights meet the BROOF(t4) classification, confirming compliance with building regulations related to external flame spread and heat penetration.

Weather Resistance & Structural Durability

• Wind Load Endurance: Engineered to withstand wind pressures up to 1200 N/m², complying with BS EN 1991-1-4: 2005, which assesses structural stability against typical wind loads.
• Snow Load Performance: Designed to endure snow loads of up to 600 N/m², in accordance with BS EN 1873: 2005, ensuring resilience in extreme weather conditions.
