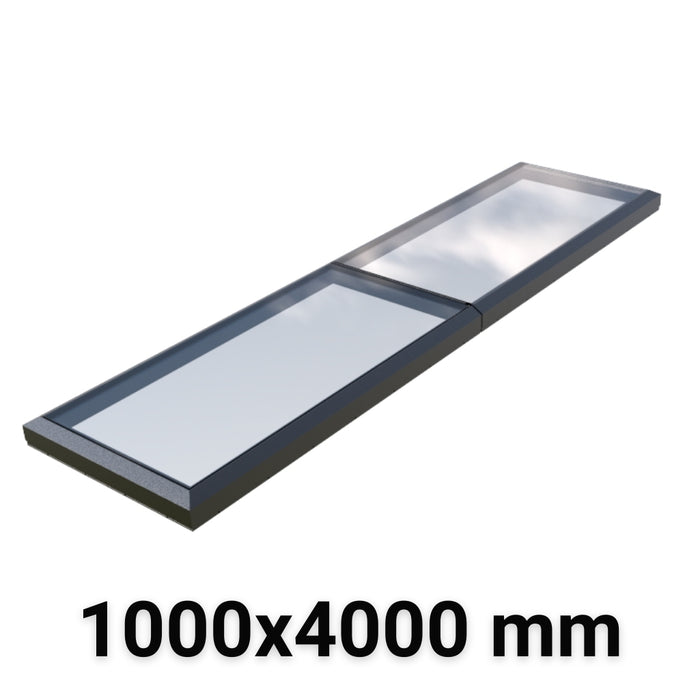

Fixed Modular Glass Link Skylight – A Bright & Contemporary Solution

Enhance your space with a sleek, flush modular skylight designed to deliver uninterrupted natural daylight into large interiors. Whether for modern homes or commercial properties, this skylight blends seamlessly with contemporary architecture, offering minimal framing and maximum light exposure.

Why Choose This Fixed Modular Skylight?

• Expansive Natural Light – Large glass panels with slim frames allow abundant daylight to brighten any interior.
• Seamless Integration – Compatible with roof pitches from 2° to 35°, making it adaptable for various designs.
• Fast & Efficient Installation – Pre-glazed modular units interlock without additional sealants, ensuring quick assembly and superior weather resistance.
• High Thermal Performance – Thermally broken aluminium frame and Low-E double glazing optimise insulation, reducing heat loss.
• Safety First – Laminated inner panes conform to CWCT TN-67 (Class 2) and ACR[M]001 Class B safety standards, offering enhanced impact protection.
• Durable & Stylish – The Anthracite Grey RAL 7016 exterior and White RAL 9010 interior create a refined, modern aesthetic.
• Enhanced Security – Constructed for added protection, meeting Secured by Design standards.

Technical Datasheet

Construction & Design

• Pre-assembled modular skylight system for quick and hassle-free installation.
• Expandable design enables multiple units to be linked together for extended skylight lengths.
• Flush-fitted panels create a smooth, contemporary aesthetic across all modules.
• Dual-tone powder-coated aluminium frame: Anthracite Grey (RAL 7016) exterior, White (RAL 9010) interior.
• Thermally broken frame enhances insulation, reducing heat transfer and improving energy efficiency.

Installation & Compatibility

• Suitable for roof pitches between 2° and 35° across the width, and up to 15° along the length.
• Larger modules may require a minimum roof pitch of 5°.
• Engineered for optimal drainage to prevent water accumulation on the surface.

Glazing Specifications

• 6mm toughened outer glass for durability and impact resistance.
• 16mm argon-filled spacer enhances thermal insulation.
• 9.5mm laminated inner pane with a 1.5mm PVB interlayer for safety (increased to 11.5mm for larger panes).
• Low-E glass coating for superior thermal efficiency and solar control.

Glazing Performance

• Light Transmission: 77% - 78%
• Solar Gain (G-Value): 0.56 - 0.57
• Reflectance: 12%
• Shading Coefficient: 0.64 - 0.65

Performance & Compliance

• Certified non-fragile to CWCT TN-67 (Class 2).
• Class B non-fragile rating to ACR[M]001 for added safety.
• Secured by Design accredited, offering enhanced security.
• U-Value: Between 1.90 - 2.1 W/m²K for improved thermal efficiency.
• Sound Insulation: 39dB (Rw) acoustic rating to minimize external noise.
• Wind Load Resistance: Up to 1200 N/m², ensuring structural integrity under high winds.
• Snow Load Resistance: Up to 600 N/m², making it suitable for harsh weather conditions.

Warranty & Certification

• 10-year commercial warranty ensuring long-term durability and performance.
• Manufactured to ISO 9001 & ISO 14001 standards, guaranteeing quality and environmental responsibility.

Sustainability & Materials

• Thermally broken aluminium frame for superior insulation and reduced energy loss.
• Constructed from recyclable materials including aluminium, glass, ABS, and PVC.
• BRE Verified Environmental Product Declaration (EPD) for sustainable construction projects.

Product Care Datasheet

Installation Guide

Structural Guarantee

• Glass Link Rooflights are are guaranteed to remain fit for purpose under normal industrial conditions for 20 years with a 10-year warranty against becoming perforated, losing significant structural integrity, or distorting to the extent of losing weather-tightness.

Insulated Glass Protection

• The insulated glazing unit comes with a 5-year warranty, safeguarding against defects or premature failure.

If any glass damage is found upon delivery, please report it within 12 hours to qualify for a return or replacement. Prompt reporting helps us resolve issues quickly and efficiently.

Safety & Structural Integrity

• Non-Fragility Compliance: Glass Link modules conform to CWCT TN-67 for Class 2 non-fragile roofs and achieve ACR[M]001 Class B non-fragility when correctly installed as per Brett Martin Daylight Systems’ guidelines.
• Occupant Protection: The laminated inner glass pane enhances safety, preventing breakage risks and ensuring compliance with Rooflight Association (formerly NARM) NTD14 industry standards.
• Usage Precaution: These skylights are not designed for foot traffic, and any impact from falling objects or individuals may result in damage, requiring replacement if necessary.
• Industry Compliance: All glazing components conform to BS EN 12150, BS 14449, and BS 1279, meeting rigorous safety and performance standards.

Security & Installation

• Secure Fixings & Installation: Designed to be mounted on a structural, insulated builder’s upstand, each unit is securely affixed using self-drilling, anti-tamper security fixings to enhance protection against tampering or unauthorized removal.

Fire Resistance & Regulations

• Fire Safety Performance: The glass in these rooflights is rated Class A under EN 13501-1, classified as CWFT (Classified Without Further Testing) per European Commission Decision 96/603/EC, ensuring fire resistance without the need for additional testing.
• Building Regulations Compliance: Equipped with a 6mm toughened outer pane, the skylights meet the BROOF(t4) classification, confirming compliance with building regulations related to external flame spread and heat penetration.

Weather Resistance & Structural Durability

• Wind Load Endurance: Engineered to withstand wind pressures up to 1200 N/m², complying with BS EN 1991-1-4: 2005, which assesses structural stability against typical wind loads.
• Snow Load Performance: Designed to endure snow loads of up to 600 N/m², in accordance with BS EN 1873: 2005, ensuring resilience in extreme weather conditions.
