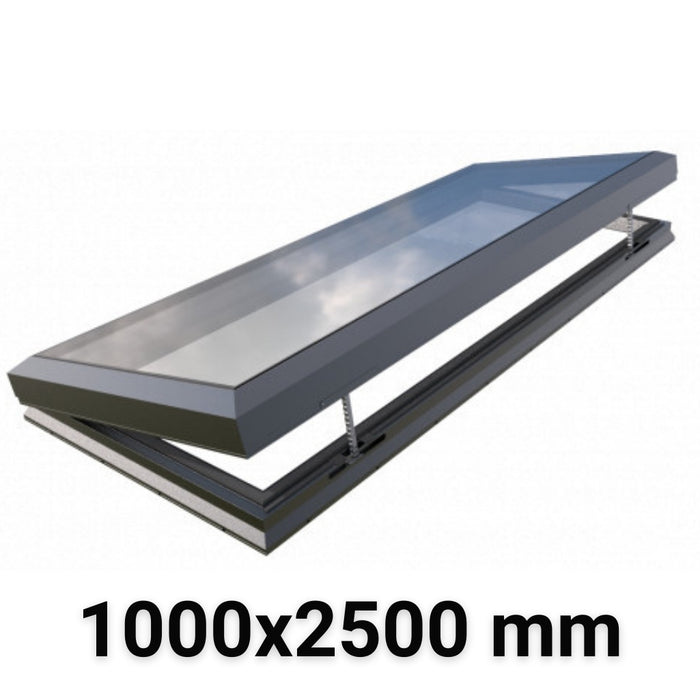

Electric Opening Single Module Glass Link Skylight

Designed to flood interiors with natural light while offering automated ventilation, the Electric Opening Single Module Skylight is the perfect addition to contemporary spaces. Whether for residential or commercial use, this sleek skylight allows fresh air to circulate, improving indoor comfort and creating a brighter, healthier environment.

Why Choose This Skylight?

• Seamless Ventilation – Open and close with a wall switch, remote control, or rain sensor automation for effortless operation.
• Modern, Flush Aesthetic – Sleek design with hidden actuators maintains a clean, unobtrusive look.
• Smart Climate Control – Optional automated panels allow synchronised operation of multiple skylights.
• Maximised Daylight & Airflow – Large glass panels increase brightness while improving air circulation.
• Quick & Hassle-Free Installation – Pre-glazed modules snap together, eliminating the need for additional flashings or sealants.
• Exceptional Thermal Performance – Low-E double glazing and a thermally broken aluminium frame help reduce heat loss and enhance energy efficiency.
• Built for Safety – Laminated glass meets industry safety standards, ensuring protection for occupants below.

Technical Datasheet

Sleek & Modern Design

• Flush frame design creates a contemporary, seamless look, even in opening configurations.
• Hidden actuators and internal components maintain an uncluttered light well for a clean aesthetic.
• Durable powder-coated aluminium frame, finished in Anthracite Grey (RAL 7016) externally and White (RAL 9010) internally.
• Thermally broken aluminium structure enhances insulation and reduces energy loss.

Operation & Control

• Automated chain actuator system allows smooth electric opening.
• Wall switch operation as standard, with an optional remote control for enhanced convenience.
• Integrated rain sensor (optional) triggers automatic closing in wet conditions.
• Optional multi-unit control panels enable simultaneous operation of multiple skylights.

Installation & Roof Compatibility

• Suitable for roof pitches between 2° and 35° across the span and 0° to 15° along the length.
• Larger modules may require a minimum pitch of 5° for proper drainage.
• Engineered to prevent water pooling and ensure efficient rainwater runoff.

High-Performance Glazing

• 6mm toughened outer glass enhances durability and impact resistance.
• 16mm argon-filled spacer improves insulation and thermal efficiency.
• 9.5mm laminated inner pane with a 1.5mm PVB interlayer (increased to 11.5mm for larger sizes) for extra safety and noise reduction.
• Low-E glass coating helps retain heat in winter and reduce overheating in summer.

Thermal & Light Efficiency

• Light Transmission: 77% - 78%
• Solar Gain (G-Value): 0.56 - 0.57
• Reflectance: 12%
• Shading Coefficient: 0.64 - 0.65

Structural & Environmental Performance

• Certified non-fragile in accordance with CWCT TN-67 (Class 2 roofs).
• Meets Class B non-fragile rating under ACR[M]001 for safety.
• U-Value: 1.90 - 2.1 W/m²K for optimal energy efficiency.
• Acoustic Performance: 39dB (Rw) for effective noise insulation.
• Wind Load Resistance: Up to 1200N/m².
• Snow Load Resistance: Up to 600N/m².

Long-Term Durability & Certification

• Backed by a 10-year commercial warranty for reliability and peace of mind.
• Produced under ISO 9001 (quality assurance) and ISO 14001 (environmental sustainability) standards.

Eco-Friendly Construction

• Thermally broken aluminium framework enhances energy conservation.
• Constructed from recyclable materials, including aluminium, glass, ABS, and PVC.
• BRE Verified Environmental Product Declaration (EPD) supports sustainable building projects.

Product Care Datasheet

Installation Guide

Structural Guarantee

• Glass Link Rooflights are are guaranteed to remain fit for purpose under normal industrial conditions for 20 years with a 10-year warranty against becoming perforated, losing significant structural integrity, or distorting to the extent of losing weather-tightness.

Electrical Actuator Warranty

• The electric actuators are covered for 1 year, with a lifespan of at least 10,000 operation cycles, ensuring long-term reliability.

Insulated Glass Protection

• The insulated glazing unit comes with a 5-year warranty, safeguarding against defects or premature failure.

If any glass damage is found upon delivery, please report it within 12 hours to qualify for a return or replacement. Prompt reporting helps us resolve issues quickly and efficiently.

Safety & Structural Integrity

• Non-Fragility Compliance: Glass Link modules conform to CWCT TN-67 for Class 2 non-fragile roofs and achieve ACR[M]001 Class B non-fragility when correctly installed as per Brett Martin Daylight Systems’ guidelines.
• Occupant Protection: The laminated inner glass pane enhances safety, preventing breakage risks and ensuring compliance with Rooflight Association (formerly NARM) NTD14 industry standards.
• Usage Precaution: These skylights are not designed for foot traffic, and any impact from falling objects or individuals may result in damage, requiring replacement if necessary.
• Industry Compliance: All glazing components conform to BS EN 12150, BS 14449, and BS 1279, meeting rigorous safety and performance standards.

Security & Installation

• Secure Fixings & Installation: Designed to be mounted on a structural, insulated builder’s upstand, each unit is securely affixed using self-drilling, anti-tamper security fixings to enhance protection against tampering or unauthorized removal.

Fire Resistance & Regulations

• Fire Safety Performance: The glass in these rooflights is rated Class A under EN 13501-1, classified as CWFT (Classified Without Further Testing) per European Commission Decision 96/603/EC, ensuring fire resistance without the need for additional testing.
• Building Regulations Compliance: Equipped with a 6mm toughened outer pane, the skylights meet the BROOF(t4) classification, confirming compliance with building regulations related to external flame spread and heat penetration.

Weather Resistance & Structural Durability

• Wind Load Endurance: Engineered to withstand wind pressures up to 1200 N/m², complying with BS EN 1991-1-4: 2005, which assesses structural stability against typical wind loads.
• Snow Load Performance: Designed to endure snow loads of up to 600 N/m², in accordance with BS EN 1873: 2005, ensuring resilience in extreme weather conditions.
